Remote Hydraulic Cylinder

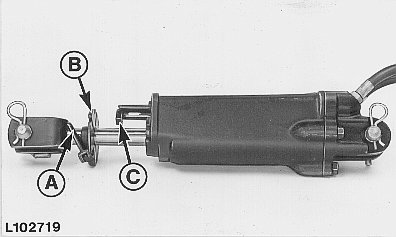

L102719-UN-12AUG94

A - Stop lever

B - Adjustable stop

C - Stop rod arm

The total retract stroke may be varied from 0 to 203 mm (0-8 in.) by means of the adjustable stop.

Turn adjustable stop so that stop rod arm does not come into contact with stop lever.

After the adjustable stop comes into contact with the stop rod arm, a further 38 mm (1.5 in.) of slow travel is gained if remote cylinder control lever is held in “retract” position.
